1080P HD IP Mini Vehicle Mounted PTZ Camera

1080P HD IP Mini Vehicle Mounted PTZ Camera

Model NO.: CAHC-B200/B300

Quantity:

Product Description

Features

※ Integrated structure design, Protection grade up to IP66.
※ Small size light weight, Single ball does not exceed 2.5kg
※ 2MP HD camera, resolution up to 1080P
※ 360 degree continuous rotation, support patrol, line scan, preset position, park position, etc.
※ 23x optical zoom ,can clearly see vehicles and pedestrians 200 meters away（optional 30x zoom）
※ Support 3D positioning function, accurate positioning monitoring against the selected screen
※ Imported high-power infrared light, 60-80m IR distance

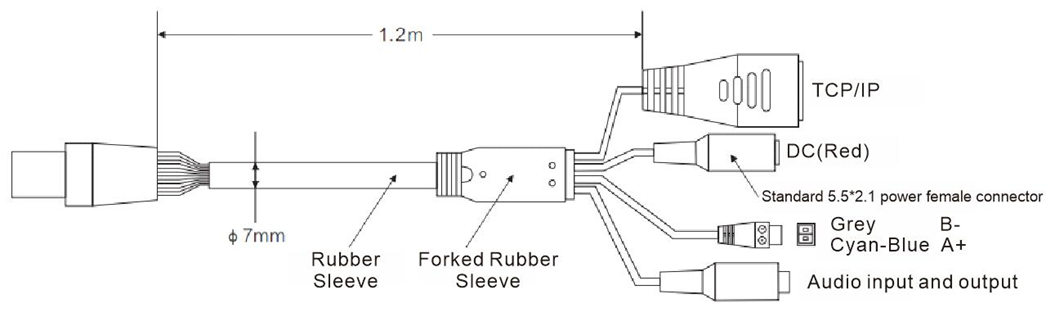

※ support network control，support IP/RS485, Vehicle Keyboard Controller
※ Suitable for roof mounting
※ Ultra-wide voltage design,input voltage range supports 9-36V.
※ Equipped with a DC-DC isolated wide-voltage input power supply module
※ Network output, support hikvision, dahua mainstream vehicle hard disk recorder
※ Support AI
※ Support AHD/TVI/CVI

Technical Specification

Model No.	CAHC-B200 / CAHC-B300
Protocol	ONVIFprotocol, GB28181protocol, support Hikvision,Dahua private protocol
Input	Built in 1CH video, 1CH audio
PTZ
Pan Range	360° continuous rotation
Tilt Range	-30°-90°
Rotation Speed	pan control speed:100°/s, tilt control speed:60°/s
Preset	255x
Patrol	4x
Line scan	Support
Park function	Support
IR distance	4x high-power infrared lamps, 2 groups (low beam/high beam) brown glass filter, infrared distance up to 80 meters
Camera
Sensor	1/2.8"High performance low illumination CMOS sensor (IMX327)
Resolution	1080P (1920*1080 25/30 frames/sec)
Optical zoom	20x/30x
Focus Lens	f = 4.7~94mm / 4.7~141mm
Iris	F1.6~F3.5
View Angle	Wide:58.9°×45.3°Tele:2.11°×1.61°
Illumination	F1.6(W),50 IRE)0.05 lx(1/30s) IR-CUT On,0.005 lx(1/4s) IR-CUT Off
WDR	DWDR
Day-night mode	ICR cut switch
IP & Audio
Compression	H.264/H.265
Bit Rate	32Kbps - 16Mbps
Fram Rate	1-25fps(50Hz) 1-30fps(60Hz)
Stream	Support dual stream, main stream (1080P; 960P: 720P), sub stream (D1; VGA; CIF)
Snap	Support Resolution: D1/720P/1080P(default)
Audio input	Optional
Compression Standard	G711
Sampling Rate	16K, 32K, 64K, 128K
Others
LED light	1 ring light backlight
OLED screen	Status display
Alarm Input	1CH
Alarm Output	1 Group
Alarm Input	1CH
Indicator Light	Power indicator light, 1 group
General
Power Supply	DC12.6V 3A
Protection Grade	IP67
Working Temperature	-30-60°
Working Humidity	0~95% No condensation
Working voltage	Ultra-wide voltage design 9~36V

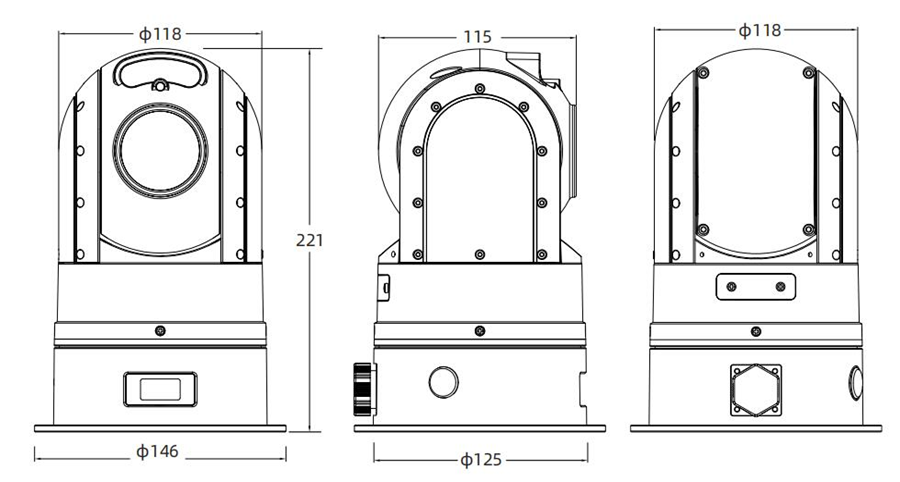

Dimension	MaxΦ125118222mm
Weight	Net weight 2.3kg
Installation	Vehicle mounted,optional magnetic suction cup
