| Features | |||||
| ※ 1/2.8"CMOS, 2.13MP, 30X/20X optical zoom ※ Support HD-SDI and SD output ※ Efficient 120m IR distance ※ Hidden seamless window wiper with adjustable speed ※ Wide dynamic range, ICR day/night ※ Optional damping system ※ Digital image stabilization ※ Protection index: IP67 ※ Soft PTZ address, protocol and baud rate self-adpative ※ 10.8-28V voltage input ※ Auto power-off with low power supply | |||||
 | |||||

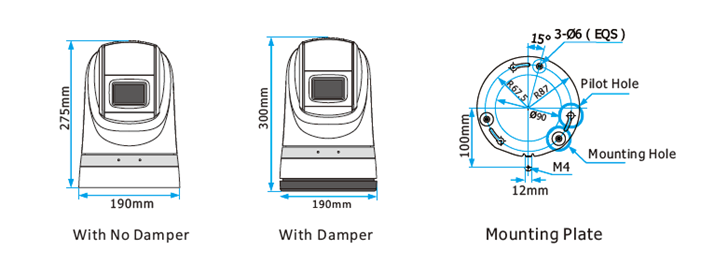

Dimensional Drwing
| |||||
| Technical Specification | |||||
| Model No. | PAHC-S2008-IR | PAHC-S3002-IR | |||
| Camera | |||||
| Image Sensor | 1/2.8"CMOS | ||||
| Effective Pixel | 2.13MP | ||||
| Signal System(HD) | HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 ; SD: PAL/NTSC | ||||
| Signal System(SD) | PAL/NTSC | ||||
| Min.Illumination | Color:0.0013Lux; B/W:0.0008Lux | ||||
| White Balance | Auto | ||||
| Focus | Auto / Manual | ||||
| Exposure | Auto / Manual | ||||
| S/N Ratio | Note less than 50 Db | ||||
| BLC | On / Off | ||||
| WDR | On / Off | ||||
| Digital Image Stabilization | No | On/Off | |||
| Digital Noise Reduction | 1 - 5Steps/OFF | ||||
| Day/Night | Auto / Manual | ||||
| Lens | |||||
| Optical Zoom | 20X | 30X | |||
| Digital Zoom | 12X | ||||
| Focal | f=4.7mm - 94mm | f=4.3mm - 129mm, | |||
| IRIS | F1.6 to F3.5 | F1.6 to F4.7 | |||
| View Angle | 59.5° (wide) to 3.3° (tele) | 63.7° (wide) to 2.3° (tele) | |||
| PTZ | |||||
| Pan Range | 360° Continuous | ||||
| Pan Speed | Control Speed:0.5° - 80°/s, adjustable; Preset Speed:80°/s | ||||
| Tilt Range | - 15 ° - 90° with auto flip | ||||
| Tilt Speed | Control Speed:0.5° - 75°/s, adjustable; Preset Speed:75°/s | ||||
| Preset Number | 256 | ||||
| Preset Precision | ±0.2° | ||||
| IR Light | |||||
| Wave Length | 850nm/940nm | ||||
| Range | 120m(850nm) / 60m(940nm) | ||||
| Switch | Auto / Manual | ||||
| General | |||||
| OSD Lanuage | English | ||||
| Video Output(HD) | HD-SDI | ||||
| Video Output(SD) | CVBS | ||||
| Comm. Interface | RS-485 | ||||
| Address | 0 - 255 | ||||
| Comm.Protocol | PELCO-P / PLECO-D(self-adaptive) | ||||
| Protocol | 2400bps, 4800bps,9600pbs,19200bps(self-adaptive) | ||||
| Voltage | DC 10.8 - 28V | ||||
| Power | Min:12W; Max:55W | ||||
| Working Temperature | -35°C - +65°C | ||||
| IP Code | IP67 | ||||
| Dimensions | Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm) | ||||
| Weight | Standard: 4.9kg; 5.65kg(with damper) | ||||
