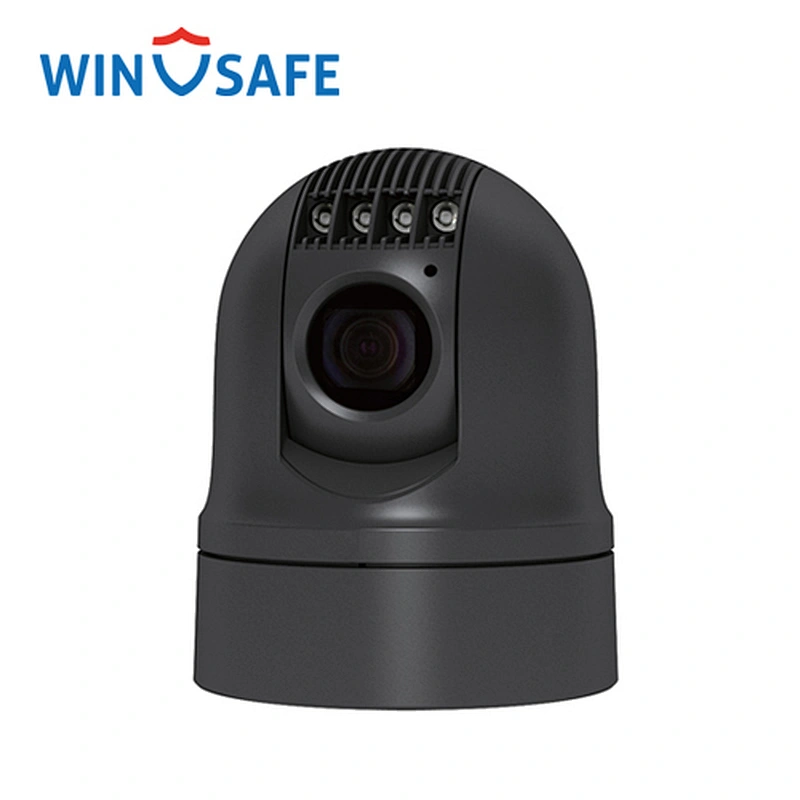

20X Optical Zoom HD-SDI Rugged PTZ Camera

Quantity:

CAHC-A2001

※ 2.14MP HD sensor, supporting 1080p,1080i,720p output, full digital video technology

※ HD-SDI for transfer of HD video

※ Efficient 60M IR lighting, excellent night vision performance

※ Portable with compact design & high reliability

※ Optional damping system

※ WDR supported

※ Built-in defogger

※ Self-adaption of Protocol & Baud rate

※ Wide range of voltage input(10.8-28V)

※ Auto power-off which low power supply

Model No.	CAHC-A2001-IR
Camera
Image Sensor	1/2.8"Exmor CMOS
Effective Pixel	2.14MP
Video Output	HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25
Min.Illumination	Color: 0.5Lux; B/W: 0.1Lux
White Balance	Auto
Focus	Auto / Manual / PTZ Trigger
Exposure	Auto / Shutter priority
S/N Ratio	50 Db
BLC	On / Off
WDR	On / Off
Digital Noise Reduction	1 - 5 Steps / OFF
Day/Night	Auto / Manual
Lens
Optical Zoom	20X
Digital Zoom	12X
Focal	f = 4.7 - 94mm
IRIS	F 1.6 - F3.5
Angle Field of View	59.4° - 2.9°
PTZ
Pan Range	360° Continuous
Pan Speed	Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s
Tilt Range	- 15 ° - 90°( Auto Flip)
Tilt Speed	Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s
Preset Number	256
Preset Precision	±0.2°
IR Light
IR Wave Length	850nm / 940nm
Range	60m(850nm) / 30m(940nm)
Switch	Auto / Manual
General
OSD Lanuage	English
Comm. Interface	RS-485
Video Interface	HD: HD-SDI
Protocol	2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Address	0-255
Voltage	DC10.8-28V
Power	8W(Standby); 25W(Aux lights ON, defogger ON, and P/T runing continuously)
Working Temperature	-30°C - +65°C
IP Code	Magnet / Fixed / Fixed with Damper
Dimensions	Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper
Weight	Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg
