| Features | |||||||||
※Compact design, suitable for small vessels | |||||||||

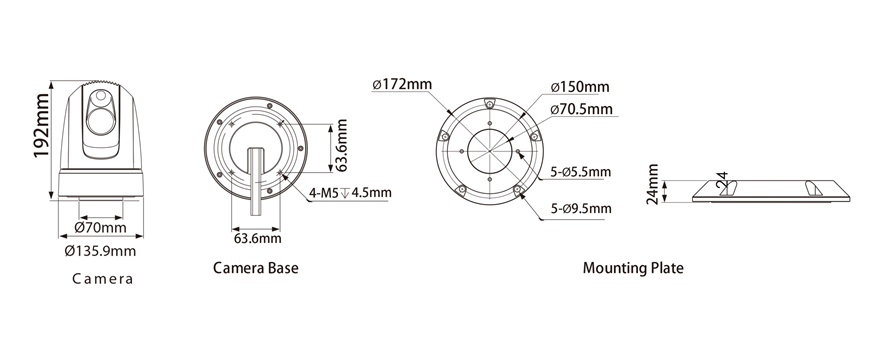

| Dimensional Drwing | |||||||||
 | |||||||||
| Technical Specification | |||||||||
| Model No. | PATC-DZ319 | PATC-DZ619 | |||||||
| Thermal Imaging Camera | |||||||||
| Sensor Type | Uncooled Amorphns Silicon FPA | ||||||||
| Resolution | 384 x 288 | 640 x 480 | |||||||
| Sensor Size | 17μm | ||||||||
| NETK(300K) | ≤60mk | ||||||||
| FOV | 19mm:19.5° x 14.7° | 19mm:32.5° x 24.5° | |||||||
| Detecting Range | Vehicle:2570m Man:550m | Vehicle:2570m Man:550m | |||||||
| Recognition Range | Vehicle:640m Man:130m | ||||||||
| Video Display | Black Hot / White Hot | White Hot/Black Hot Color Palettes | |||||||
| Digital Zoom | 1X,2X,4X | ||||||||
| Daylight Imaging Camera | |||||||||
| Video Sensor | 1/2.8"Progressive Scan CMOS | ||||||||
| DNR | 1-5 Steps/Off | ||||||||
| Effective Pixel | 1920(H)x1080(V) | ||||||||
| Image Sensor | 2.14MP | ||||||||
| HD Video(network) | 1080P/30,1080P/60,720P/60,720P/30,1080P/25,1080P/50,720P/50,720P/25 | ||||||||
| Optional SD Video | PAL/NTSC | ||||||||
| Lens | Manual Fixed Focus | ||||||||
| Digital Zoom | 2X/4X | 2X/4X | |||||||
| Image Flip | Support | ||||||||
| Day/Night | Auto/Manual | ||||||||
| PTZ | |||||||||
| Pan Range | 360° Continuous | ||||||||
| Pan Speed | Control speed: 0.1° - 60°/s;Adjustable Preset speed: 60°/s | ||||||||
| Tilt Range | -15° - 90°(Auto Flip) | ||||||||
| Tilt Speed | Control:0.2° - 60°/s, adjustable; Preset Speed: 60°/s | ||||||||
| Preset | 256 | ||||||||
| Network | |||||||||
| Image Resolution | 1920*1080 @ 30fps | ||||||||
| Image Compression | H.264 | ||||||||
| Dual Stream | Support | ||||||||
| Protocols | HTTP, RSTP,TCP,UDP,ONVIF | ||||||||
| General | |||||||||
| Menu Language | English | ||||||||
| Control Interface | RS-485 | ||||||||
| Adress | 0 - 255 | ||||||||
| Network Interface | 10M/100M | ||||||||
| Video Output | CVBS | ||||||||
| Comm Protocol | PELCO-P/PELCO-D(Self-Adaptive) | ||||||||
| Baud Rate | 2400bps, 4800bps,9600bps,19200bps(Self Adaptive) | ||||||||
| Voltage | DC 10.8 -28V | ||||||||
| Power | Min:12W; Max: 25W | ||||||||
| Working Temperature | -25°C - +55°C | ||||||||
| IP Code | IP66 | ||||||||
| Dimensions | Φ135.9(mm) x 192(mm) | ||||||||
| Weight | 2.1kg | ||||||||
