Features
| ※ 1/2.8"CMOS, 2.13MP, 30X/20X optical zoom ※ Support HD-SDI and SD output ※ Efficient 60M IR distance ※ Wide dynamic range, ICR day/night ※ Digital image stabilization ※ Protection index: IP66 ※ Self-adaption of protocol & baud rate ※ 10.8-28V voltage input ※ Auto power-of with low power supply |

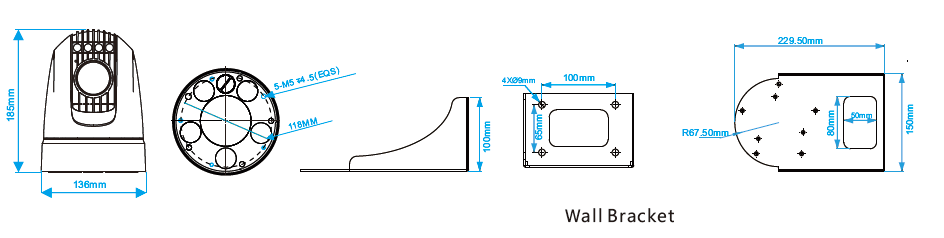

Dimensional Drawing
Technical Specification
| Model No. | AC3-S2008H-IR | AC3-S3002H-IR |
| Camera | ||
| Image Sensor | 1/2.8"Progressive Scan CMOS, 2.13MP | |
| Active Pixel | 1920(H) x 1080(V) | |
| Signal System(HD) | HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 | |
| Signal System(SD) | PAL / NTSC | |
| Min.Illumination | Color:0.0013Lux, B/W:0.0008Lux | |
| White Balance | Auto | |
| Focus | Auto / Manual | |
| Exposure | Auto / Manual | |
| S/N Ratio | Note less than 50 Db | |
| BLC | On / Off | |
| WDR | On / Off | |
| Digital Noise Reduction | 1 - 5Steps/OFF | |
| Digital Image Stabilization | No | On/Off |
| Day/Night | Auto / Manual | |
| PTZ | ||
| Optical Zoom | 20X | 30X |
| Zoom | 12X | |
| Focal | f=4.7mm - 94mm | f=4.3mm - 129mm |
| IRIS | F1.6 to F3.5 | F1.6 to F4.7 |
| View Angle | 59.5° (wide) to 3.3° (tele) | 53.7° (wide) to 2.3° (tele) |
| PTZ | ||
| Pan Range | 360° Continuous | |
| Pan Speed | 0.1° - 60°/s, adjustable,Preset Speed:60°/s | |
| Tilt Range | - 15 ° - 90° with auto flip | |
| Tilt Speed | 0.2° - 60°/s, adjustable, Preset Speed:60°/s | |
| Preset Number | 256 | |
| Preset Precision | ±0.2° | |
| IR Light | ||
| IR Wave Length | 850nm | |
| Range | 60m | |
| Switch | Auto / Manual | |
| General | ||
| OSD Lanuage | English | |
| Video Interface(HD) | HD-SDI | |
| Video Interface(SD) | CVBS | |
| Comm. Interface | RS-485 | |
| Comm.Protocol | PELCO-P / PLECO-D(self-adaptive) | |
| Protocol | 2400bps, 4800bps,9600pbs,19200bps(self-adaptive) | |
| Address | 0-255 | |
| Voltage | DC 10.8 - 28V | |
| Power | Min:9W; Max:20W | |
| Working Temperature | -35°C - +65°C | |
| IP Code | IP66 | |
| Dimensions | Standard(Without Damper): Φ136(mm) x 185(mm) | |
| Weight | Standard(Without Damper): 2.1(±0.2)kg | |
