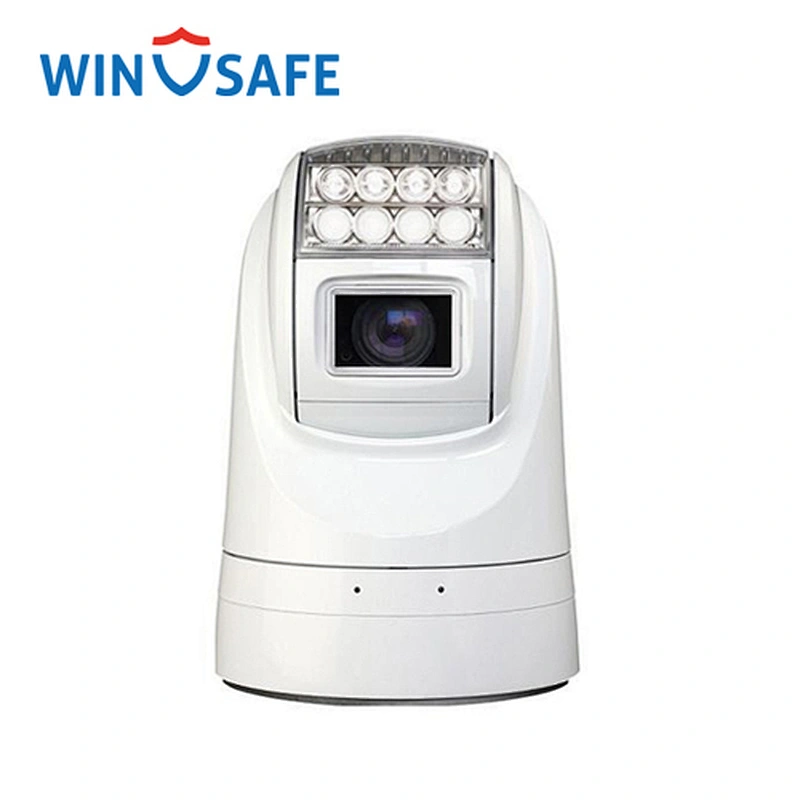

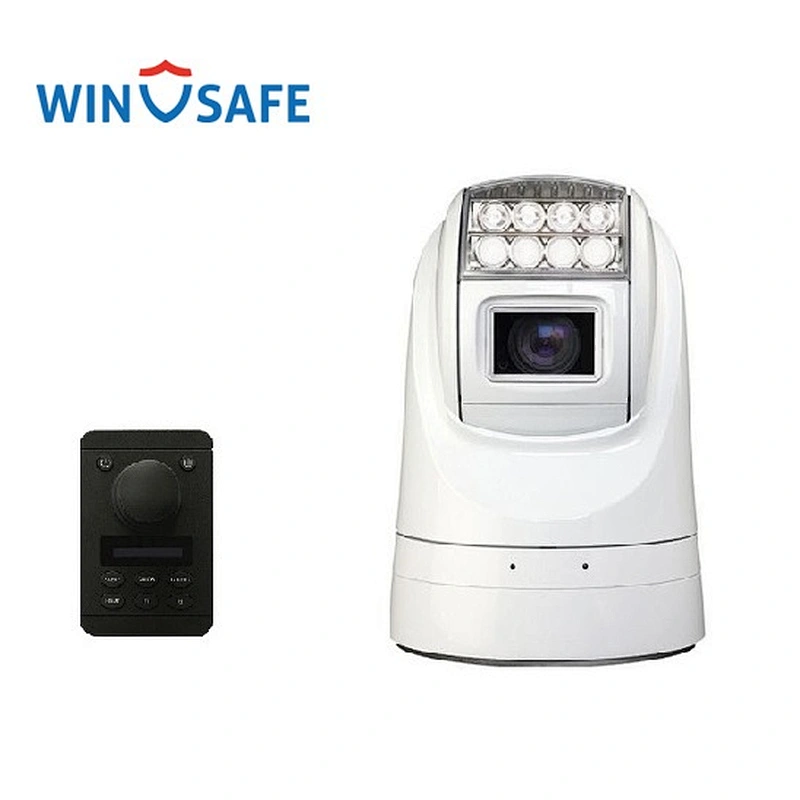

Weathproof IP67 36X Optical Zoom PAL/NTSC Analog IR Rugged PTZ Camera

Weathproof IP67 36X Optical Zoom PAL/NTSC Analog IR Rugged PTZ Camera

Model NO.: PAC-3603S-IR
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Month
Country of Origin: China
Stock Time: 5-7 Days

Quantity:

Product Description

Feature

※ Aluminum PTZ case with high strength
※ IP index up to IP67, full weather proof
※ Power aux IR system, range up to 120 meters
※ Hidden seamless window wiper with adjustable speed
※ Built-in defogger
※ New design of drive system, PTZ positioning precision up to +/-0.05°
※ Baud rate, protocol self-adaptive
※ Digital image stabilization(DIS)
※ Image flip for stand/ceiling mount
※Day/Night(ICR)
※ 10.8 - 28V voltage input
※ Auto power-off with low power supply

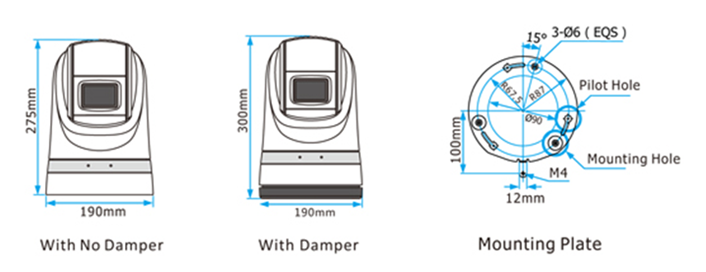

Dimensional Drawing

Technical Specification

Model No.	PAC-S3601P(N)-IR	PAC-S2801P(N)-IR
Camera
Image Sensor	1/4"SONY EX-View HAD CCD
Effective Pixel	PAL: 752(H) x 582(V); NTSC:768(H) x 494(V)
Resolution	550TVL
Optical Zoom	36X	28X
Digital Zoom	12X
Min Illumination	0.01Lux(Lights Off); 0Lux(Lights On)	0.0015Lux(Lights Off); 0Lux(Lights On)
White Balance	Auto
Focus	Auto/Manual
Exposure	Auto/Manual
S/N Ratio	Not less than 50DB
BLC	On/Off
WDR	On/Off	No
Digital Image Stabilization	On/Off
Digital Noise Reduction	1-5 steps/Off
Day/Night	Yes
Lens	F1.6 - F4.5, f=3.4 - 122.4mm	F1.35 - F3.7, f=3.5 - 98mm
View Angle	57.8°(wide) to 1.7°(tele)	55.8°(wide) to 2.1°(tele)
PTZ
Pan Range	360° Continuous
Pan Speed	0.04° - 90°/s, adjustable
Tilt Range	-15° - 90°(Auto Flip)
Tilt Speed	0.3° - 60°/s, adjustable
Preset Speed	Pan: 120°/s; Tilt: 90°/s
Preset	256
Preset Predicion	±0.05°
IR Light
IR Wave Lenth	850nm/940nm
Lamp Power(with driver)	30W(850nm) /15W(940nm)
Light Power / Brightness	10W(850nm) / 5W(940nm)
Range	120m(850nm) / 60M(940nm)
Switch	Auto/Manual
General
Comm. Interface	RS485
Protocol	PELCO-P / PELCO-D(self-adaptive)
Adress	0 - 255
Baud Rate	2400bps, 4800bps, 9600bps, 19200bps(self-adaptive)
Power Consumption	20W(Defogger and lights off); 40W(Defogger on and lights off); 70W(Defogger and lights on)
Working Temperature	-25°C - +65°C
Voltage	DC10.8V - 28V
IP Code	IP67, TVS, Anti-Surge
Dimensions	Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm)
Weight	Standard: 4.9kg; Optional: 5.65kg ( with damper)
